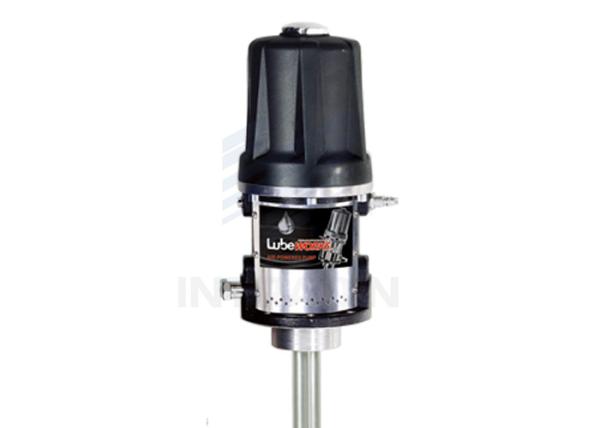

    Air Operated High Pressure Grease Pump For Dispensing Short Long Distance

    Ask Lasest Price
    Brand Name : Lubeworks
    Model Number : 17127550
    Price : negotiation
    Payment Terms : T/T or L/C at sight
    Supply Ability : 4,000pcs per month
    Delivery Time : 40 working days after received your payment
    • Product Details
    • Company Profile

    Air Operated High Pressure Grease Pump For Dispensing Short Long Distance

    High Pressure Pneumatic Grease Pump For Grease Oil Dispensing Short Long Distance


    Specifications:


    Item No.17127530/1712753217127550/1712755217127560/17127562
    Drum application20-30kgs / 60lbs50-60kgs / 120lbs180-220kgs / 400lb
    Pressure ratio75:175:175:1
    Air inlet pressure5-12bar / 70-180psi5-12bar / 70-180psi5-12bar / 70-180psi
    Max. fluid pressure900bar / 13500psi900bar / 13500psi900bar / 13500psi
    Air motor effective diameter76mm/ 3"76mm/ 3"76mm/ 3"
    Air consumption (min)@ 8bar 600L@ 8bar 600L@ 8bar 600L
    @ 115psi / 21.6CFM@ 115psi / 21.6CFM@ 115psi / 21.6CFM
    Max.free flow rate (min)1.6Kg/min1.6Kg/min1.6Kg/min
    Suction tube diameter32mm / 1-1/4"32mm / 1-1/4"32mm / 1-1/4"
    Suction tube length480mm / 19"740mm / 29"940mm / 37"
    Air inlet connection1/4" quick plug1/4" quick plug1/4" quick plug
    1/4" NPT Female1/4" NPT Female1/4" NPT Female
    Oil outlet connection1/4" BSP/ 1/4" NPT Female1/ 4" BSP/ 1/4" NPT Female1/ 4" BSP/ 1/4" NPT Female
    Weight8.8kgs / 19.4lbs9.8kgs / 21.6lbs10.7kgs / 23.5lbs
    Package size92×25×19cm118×25×19cm139×25×19cm

    Description:


    75:1 AIR-OPERATED GREASE PUMP
    Designed for manufacturing or automotive service facilities!
    • 75:1 ratio allows grease to be pumped up to NLGI #2
    • Double acting pump provides continous flow operation
    • Rugged inlet cage withstands demanding shop environments
    • Full line of stationary and portable package configurations
    • High flow capability, stable function
