    70 - 180psi Heavy Duty Air-Operated Grease Pumps For Automotive Sevice Facilities

    Ask Lasest Price
    Brand Name : Lubeworks
    Model Number : 17125030
    Price : negotiation
    Payment Terms : T/T or L/C at sight
    Supply Ability : 4,000pcs per month
    Delivery Time : 40 working days after received your payment
    • Product Details
    • Company Profile

    70 - 180psi Heavy Duty Air-Operated Grease Pumps For Automotive Sevice Facilities

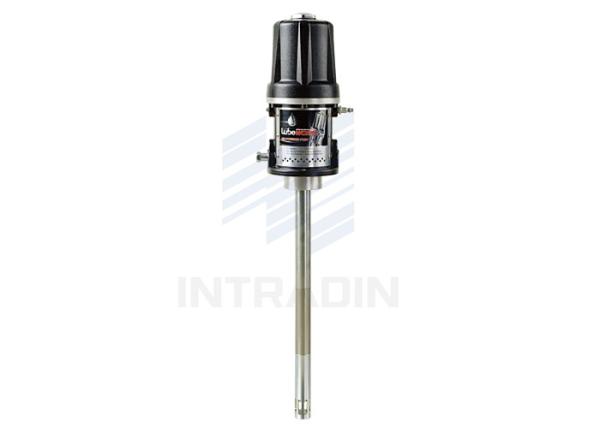

    Heavy Duty 50:1 Ratio Pneumatic Grease Pump For Automotive Sevice Facilities


    50:1Air operated grease pump


    Specifications:


    Item No.17125030/1712503217125050/1712505217125060/17125062
    Drum application20-30kgs / 60lbs50-60kgs / 120lbs180-220kgs / 400lb
    Pressure ratio50:01:0050:01:0050:01:00
    Air inlet pressure5-12bar / 70-180psi5-12bar / 70-180psi5-12bar / 70-180psi
    Max. fluid pressure600bar / 9000psi600bar / 9000psi600bar / 9000psi
    Air motor effective diameter76mm/ 3"76mm/ 3"76mm/ 3"
    Air consumption (min)@ 8bar 600L@ 8bar 600L@ 8bar 600L
    @ 115psi / 21.6CFM@ 115psi / 21.6CFM@ 115psi / 21.6CFM
    Max.free flow rate (min)1.8kgs / 4lbs1.8kgs / 4lbs1.8kgs / 4lbs
    Suction tube diameter32mm / 1.25"32mm / 1.25"32mm / 1.25"
    Suction tube length480mm / 19"740mm / 29"940mm / 37"
    Air inlet connection1/4" quick plug1/4" quick plug1/4" quick plug
    1/4" NPT Female1/4" NPT Female1/4" NPT Female
    Oil outlet connection1/4" BSP/ 1/4" NPT Female1/ 4" BSP/ 1/4" NPT Female1/ 4" BSP/ 1/4" NPT Female
    Weight8kgs / 17lbs9.4kgs / 20 lbs10.5kgs / 22lbs
    Package size92x25x19cm118x25x19cm139x25x19cm

    Description:


    50:1 AIR-OPERATED GREASE PUMP
    Designed for manufacturing or automotive service facilities!
    • 50:1 ratio allows grease to be pumped up to NLGI #2
    • Double acting pump provides continous flow operation
    • Rugged inlet cage withstands demanding shop environments
    • Full line of stationary and portable package configurations
    • High flow capability, stable function
